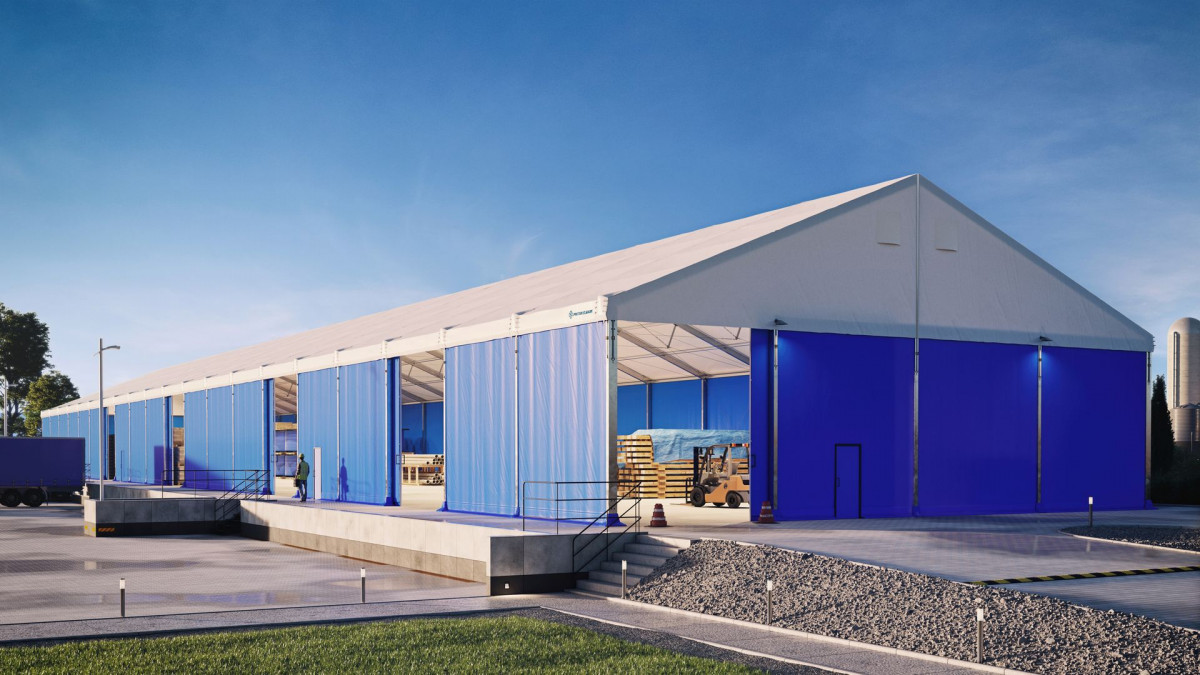

Within a very short lead time you can gain or increase your storage space. Our commercial storage buildings are a much lower cost alternative to steel framed or brick buildings and orders can be placed at any time throughout the year.
Among the many advantages of this our clear span tents are, not only the flexible order and supply dates, but also the easy assembly of the storage structures on any type of surface giving you the freedom to expand your existing warehouse complex at your chosen location.

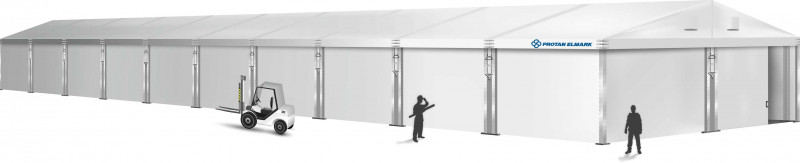

| Width | 10 m |
| Roof Type | gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium / steel |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | steel structure 18° aluminium structure 22° |
| Roof Ridge Height 22° | 5,02m/5,52m/6,02m/ 6,52m/7,02m |
| Roof Ridge Height 18° | 4,62m/5,12m/5,62m/ 6,12m/6,62m |

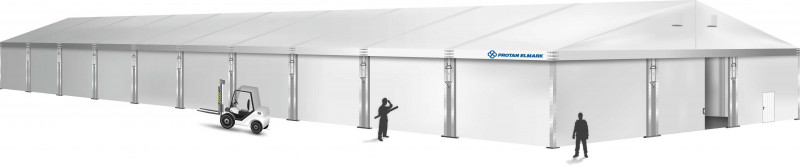

| Width | 15m |
| Roof Type | gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium / steel |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | steel structure 18° aluminium structure 22° |
| Roof Ridge Height 22° | 6,03m/6,53m/7,03m /7,53m/8,03m |
| Roof Ridge Height 18° | 5,43m/5,93m/6,43m /6,93m/7,43m |

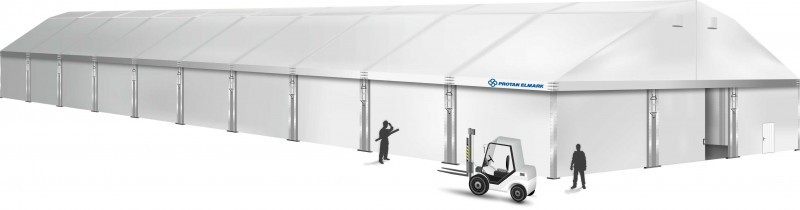

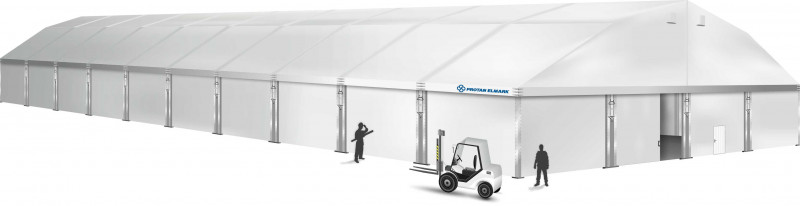

| Width | 15 m |
| Roof Type | multi-gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | 22° - top, 38° - bottom |
| Roof Ridge Height 22° | 7,91m/8,41m/8,91m/ 9,41m/9,91m |

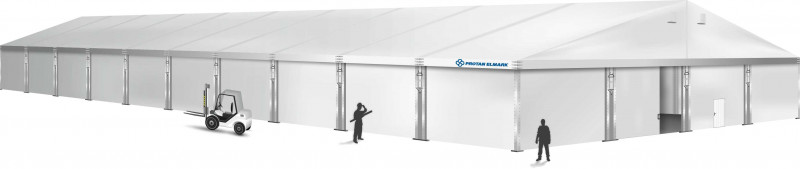

| Width | 20 m |
| Roof Type | gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium / steel |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | steel structure 18° aluminium structure 22° |
| Roof Ridge Height 22° | 7,04m/7,54m/8,04m/ 8,54m/9,04m |
| Roof Ridge Height 18° | 6,24m/6,74m/7,24m/ 7,74m/8,24m |
| Width | 20 m |
| Roof Type | multi-gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | 22° - top, 38° - bottom |
| Roof Ridge Height 22° | 8,92m/9,42m/9,92m/ 10,42m/10,92m |

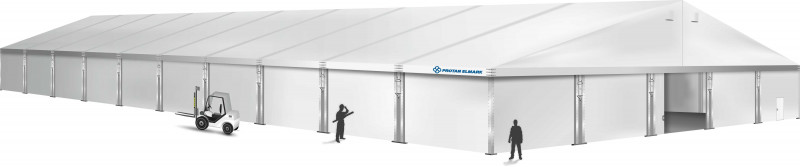

| Width | 25 m |
| Roof Type | gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | 22° |
| Roof Ridge Height 22° | 8,05m/8,55m/9,05m/ 9,55m/10,05m |
| Roof Ridge Height 18° | 7,06m/7,56m/8,06m/ 8,56m/9,06m |

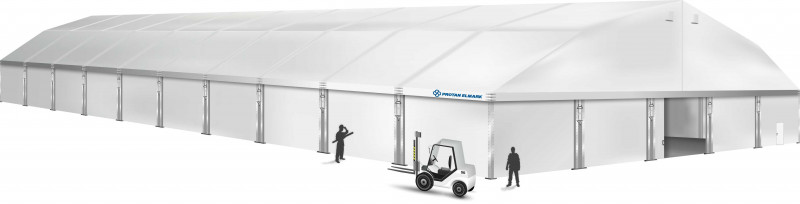

| Width | 25 m |
| Roof Type | multi-gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | 22° - top, 38° - bottom |
| Roof Ridge Height 22° | 9,93m/10,43m/10,93m/ 11,43m/11,93m |

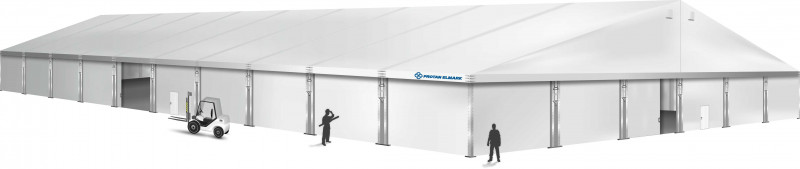

| Width | 30 m+ |
| Roof Type | gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | 22° |
| Roof Ridge Height 22° | 9,06m/9,56m/10,06m/ 10,56m/11,06m |
| Roof Ridge Height 18° | 7,87m/8,37m/8,87m/ 9,37m/9,87m |

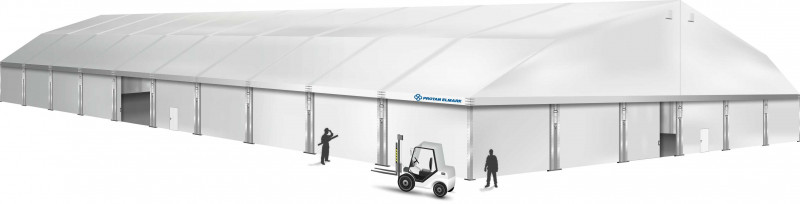

| Width | 30 m+ |
| Roof Type | multi-gable roof |
| Length | any |
| Height | 3m/3,5m/4m/4,5m/5m |
| Structure | aluminium |
| Side Walls | pvc canvas; trapezoidal sheet t-18 / t-35; sandwich panel 40mm / 60mm |
| Roof Pitch | 22° - top, 38° - bottom |
| Roof Ridge Height 22° | 10,94m/11,44m/11,94m/ 12,44m/12,94m |

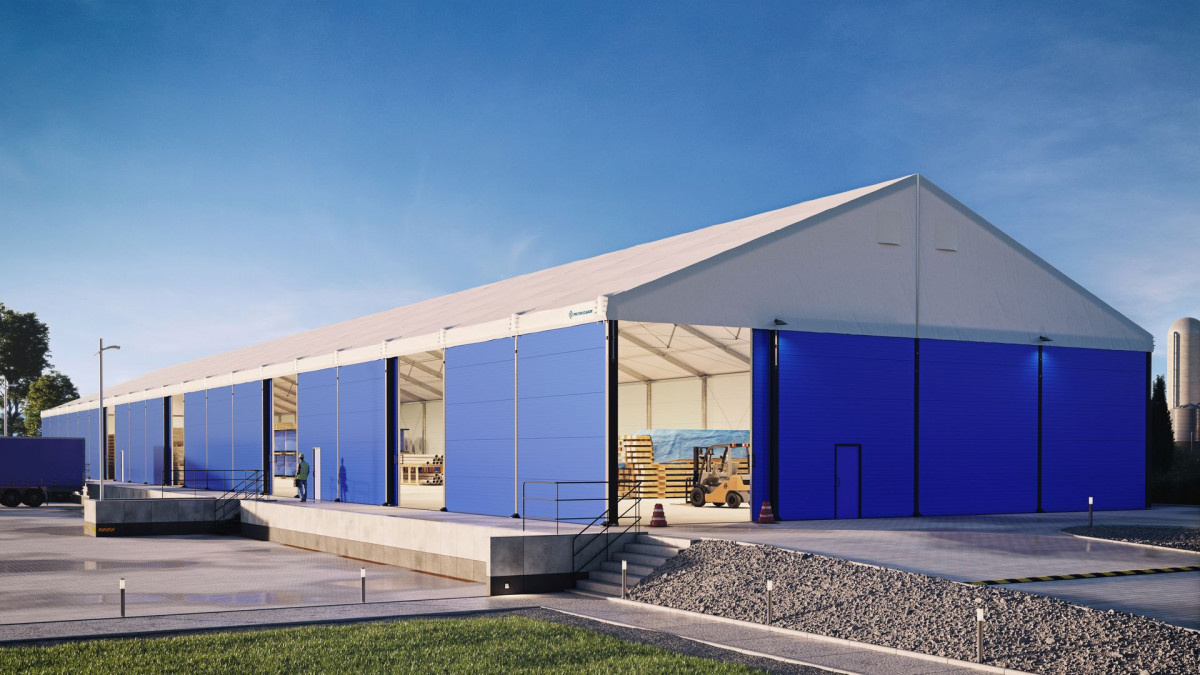

The structures are suitable for year-round warehousing and storage in any type of weather conditions. The durable PVC covers protect the interior from rain, snow and wind. In winter, they can be heated. For added strength, security and protection our structures can have trapezoid steel or composite panels fitted to the sides.The construction of a storage structure is a very attractive financial solution. The cost implication is much lower than that of similarly sized brick or steel building. Our structures have a roof covering manufactured from translucent fabric, greatly reducing the demand for electricity during daylight hours. Using one of our storage structures is simply another way of keeping your overheads to a minimum.
Lightweight and durable material that provides effective protection against rain and wind. The specialist fabric allows natural light to enter.
Single skin steel sides offer strength and durability. Robust trapezoid sheets of a suitable thickness provide excellent protection against the most variable of weather conditions.
Composite panels provide excellent thermal insulation. The panel covering also meets all European fire safety requirements and is used mainly in the construction of industrial structures.
A short implementation term is a distinctive feature of the construction of aluminum structures. Both the production itself and the assembly process are fast. Industrial warehouse made of aluminum is multifunctional, and its design and parameters are customized to individual customer preferences.
Steel structures are a very solid solution. They use a truss framework made of closed steel profiles. Thanks to this, the warehouse is more resistant to snow load. Steel structures are used especially in storage and industrial buildings.
This is an attractive solution for entrepreneurs from areas where heavy snowfall is an issue. The structure consists of frames made of steel profiles enclosed in a truss system. Its application is recommended, among others, for the construction of industrial and storage buildings.
